Descrição

La Asus PRIME B760M-A D4-CSM es una placa base dise&ntilde,ada por expertos para liberar todo el potencial de los procesadores Intel&reg, Core&trade, de 13.&ordf, generaci&oacute,n.

<>

Especificaciones

<>

<>
• Procesador<>
  <>
  • Intel&reg, Socket LGA1700 para procesadores Intel&reg, Core&trade, de 13.&ordf, generaci&oacute,n y procesadores Intel&reg, Core&trade,, Pentium&reg, Gold y Celeron&reg, de 12.&ordf, generaci&oacute,n *

  <>

  • Compatible con la tecnolog&iacute,a Intel&reg, Turbo Boost 2.0 y la tecnolog&iacute,a Intel&reg, Turbo Boost Max 3.0

  <>

  <>

<>

• Chipset<>
  <>
  • Intel B760

  <>

  <>

<>

• Memoria<>
  <>
  • 4 m&oacute,dulos DIMM, m&aacute,x. 128 GB, DDR4

  <>

  • 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/

  <>

  • 3733(OC)/3600( OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Memoria sin b&uacute,fer, sin ECC*

  <>

  • La arquitectura de memoria de dos canales admite el perfil de memoria

  <>

  • Intel Extreme (XMP)

  <>

  • OptiMem II

  <>

  <>

<>

• Slots<>
  <>
  • 1 x PCIe 4.0 x16 slot

  <>

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

  <>

  • 1 x PCIe 4.0 x16 slot (supports x1 mode)

  <>

  <>

<>

• Gr&aacute,ficos<>
  <>
  • 1 x DisplayPort

  <>

  • 2 x HDMI

  <>

  <>

<>

• Almacenamiento<>
  <>
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  <>

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  <>

  • 4 x SATA 6Gb/s ports

  <>

  <>

<>

• USB<>
  <>
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )

  <>

  • 4 x USB 2.0 ports (4 x Type-A)

  <>

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

  <>

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C&reg,)

  <>

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  <>

  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

  <>

  <>

<>

• Audio<>
  <>
  • C&Oacute,DEC de audio de alta definici&oacute,n con sonido envolvente Realtek 7.1*

  <>

  • Compatible con: detecci&oacute,n de jack, transmisi&oacute,n m&uacute,ltiple, reasignaci&oacute,n de jack del panel frontal

  <>

  • Admite reproducci&oacute,n de hasta 24 bits/192 kHz

  <>

  <>

<>

• Blindaje de audio
  <>
  <>
  • Condensadores de audio premium

  <>

  • Capas de PCB de audio dedicadas

  <>

  <>

<>

• Conectividad y redes<>
  <>
  • 1 Ethernet Realtek de 2,5 Gb

  <>

  <>

<>

• Conectores Internos<>
  <>
  • 1 x 4-pin CPU Fan header

  <>

  • 1 x 4-pin CPU OPT Fan header

  <>

  • 2 x 4-pin Chassis Fan headers

  <>

  • 1 x 24-pin Main Power connector

  <>

  • 1 x 8-pin +12V Power connector

  <>

  • 2 x M.2 slots (Key M)

  <>

  • 4 x SATA 6Gb/s ports

  <>

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

  <>

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C&reg,)

  <>

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  <>

  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

  <>

  • 3 x Addressable Gen 2 headers

  <>

  • 1 x Aura RGB header

  <>

  • 1 x Clear CMOS header

  <>

  • 1 x COM Port header

  <>

  • 1 x Front Panel Audio header (AAFP)

  <>

  • 1 x LPT header

  <>

  • 1 x S/PDIF Out header

  <>

  • 1 x SPI TPM header (14-1pin)

  <>

  • 1 x 20-3 pin System Panel header with Chassis intrude function

  <>

  <>

<>

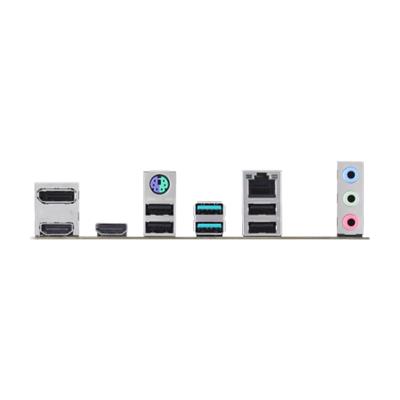

• Conectores Traseros<>
  <>
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )

  <>

  • 4 x USB 2.0 ports (4 x Type-A)

  <>

  • 1 x DisplayPort

  <>

  • 2 x HDMI&reg, ports

  <>

  • 1 x Realtek 2.5Gb Ethernet port

  <>

  • 3 x Audio jacks

  <>

  • 1 x PS/2 Keyboard/Mouse combo port

  <>

  <>

<>

• Factor de forma<>
  <>
  • mATX ( 24.4 cm x 24.4 cm )

  <>

  <>

<>
